Basics of Support Vector Machines

April 2019
it's a support vector machine!

In this post, we will explore a family of classification algorithms that has a very different theoretical motivation from ones we’ve seen previously. We will be looking at support vector machines.

Back in the early 2000s before deep learning surged to the forefront of AI, support vector machines were the cool kid on the block. Even today, support vector machines are still one of the best go-to algorithms for a new classification task because of their powerful ability to represent very diverse types of statistical relationships in data as well as their ease of training.

Max-Margin Motivations

Let’s begin by motivating support vector machines. Recall our ridiculously overused classification problem: identifying whether a car is cheap or expensive, based on a set of features of that car.

Imagine that we are plotting some of our data in 2-dimensional feature space. In other words, we are only extracting two features, X1X_1 and X2X_2, from each car for building our model. Furthermore, let’s label each point BLUE if it represents a car that is cheap and RED if it represents a car that is labelled expensive.

We will try to learn a linear model of our features, parameterized by the weights W1W_1 and W2W_2. Our model will output BLUE if W1X1+W2X2<0W_1\cdot X_1 + W_2\cdot X_2 < 0 and RED if W1X1+W2X2>=0W_1\cdot X_1 + W_2\cdot X_2 >= 0.

This model will describe a linear separator of a collection of data. That linear separator of our data could look as follows:

Linear separator of our data

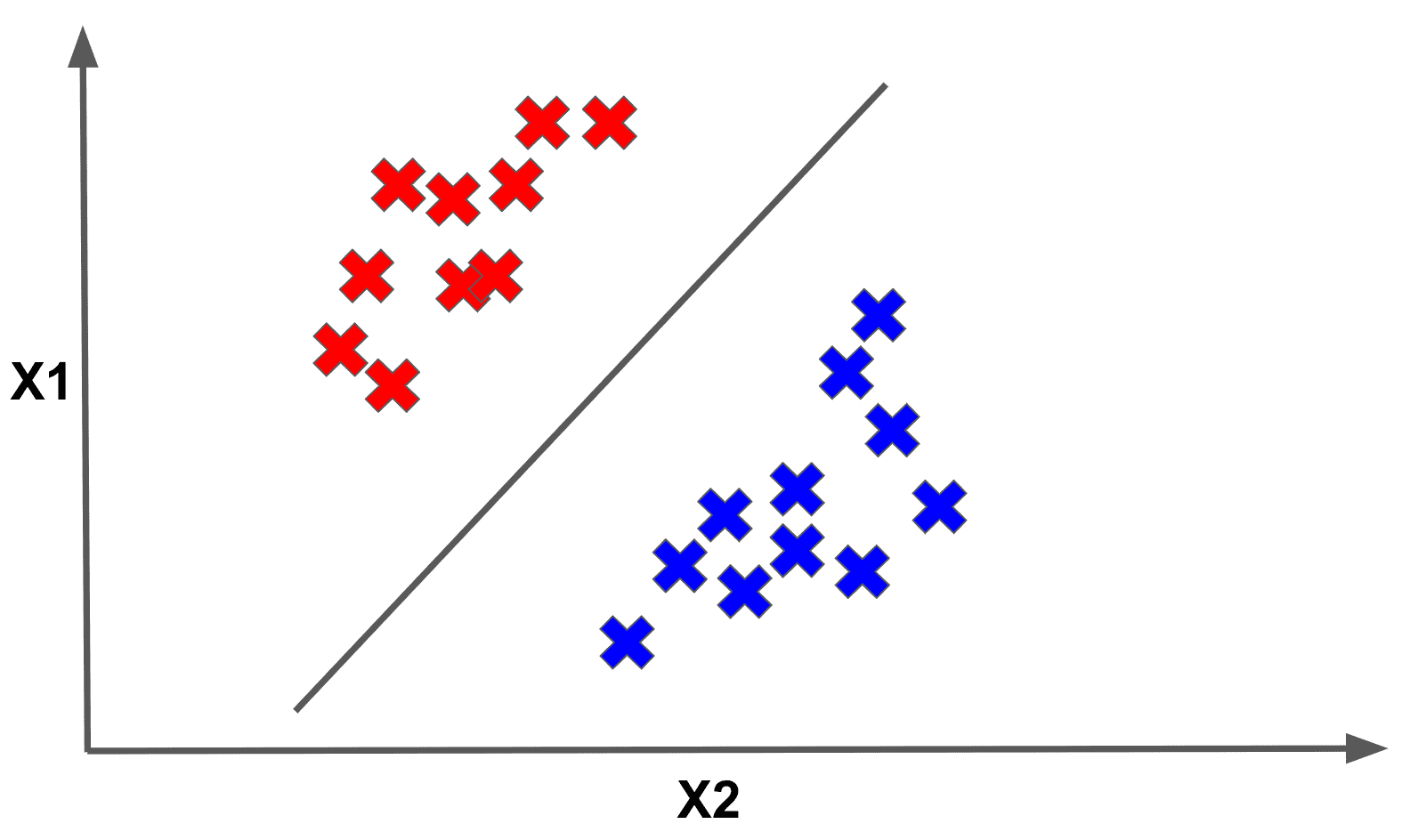

Here the datapoints above the line are classified as RED, while those below are classified as BLUE. The important thing to see is that this is only one possible linear separator of the data. However, we could envision another separator that could separate the dataset into two colored halves just as well:

Alternative linear separator of our data

In fact, there are an infinite number of possible separators that would split the data perfectly! How do we choose among them?

Consider how we decided to label a datapoint as RED or BLUE. We computed W1X1+W2X2W_1\cdot X_1 + W_2\cdot X_2 and said if it was negative, we labelled the point BLUE. Otherwise we labelled it RED. Intuitively, it seems that if the quantity W1X1+W2X2W_1\cdot X_1 + W_2\cdot X_2 for a given point is 15, we are more confident that it should be RED than one for which the quantity is 1.

Alternatively, the more negative the quantity is for a point the more confident we are that it should be BLUE. In fact, we can use this value to judge our confidence for every single point!

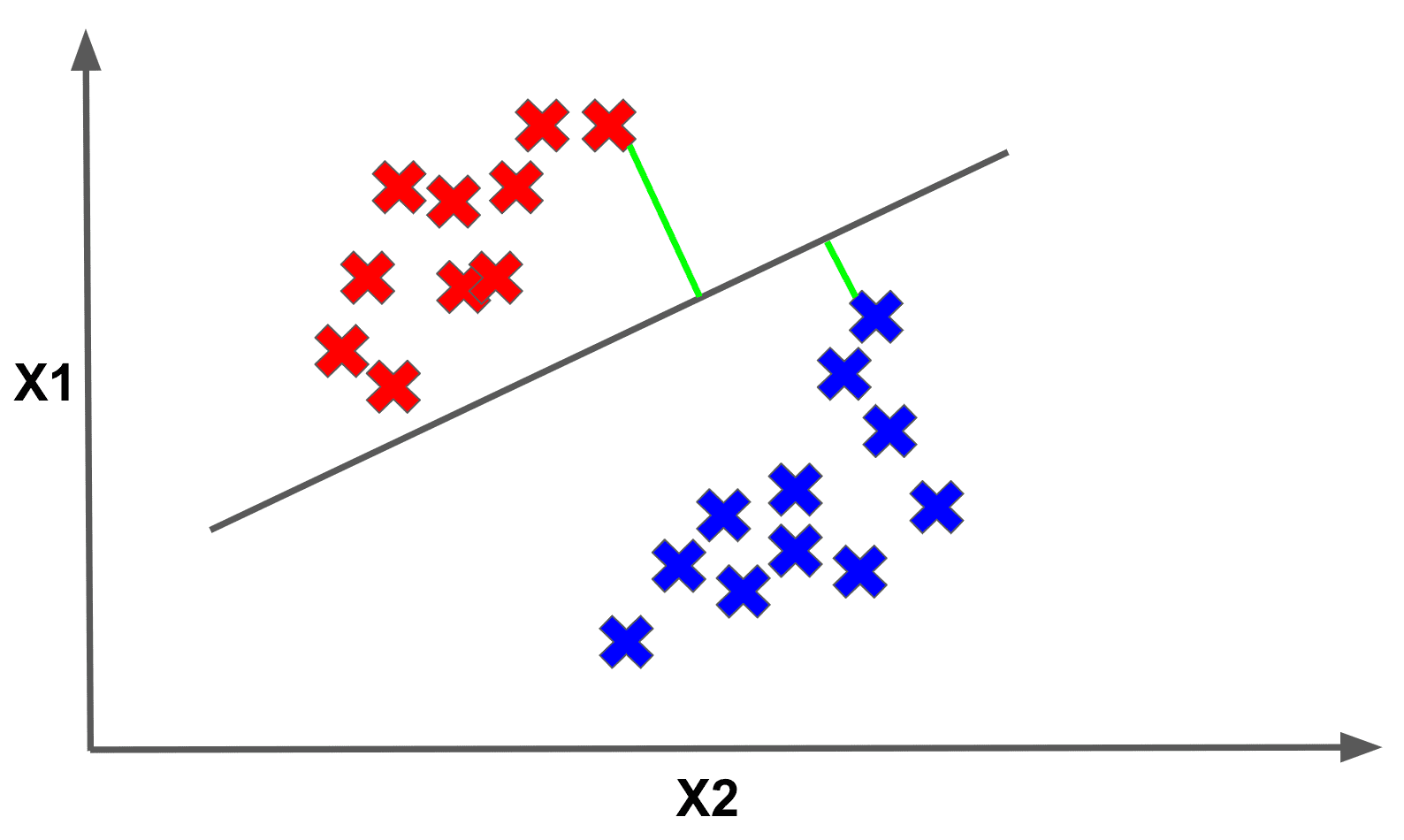

Geometrically, this confidence for a point’s label can be represented as the perpendicular distance from the point to the separator. Below we have designated the perpendicular distances to the separator for several sample points with the GREEN lines:

Linear separator of our data with distances shown

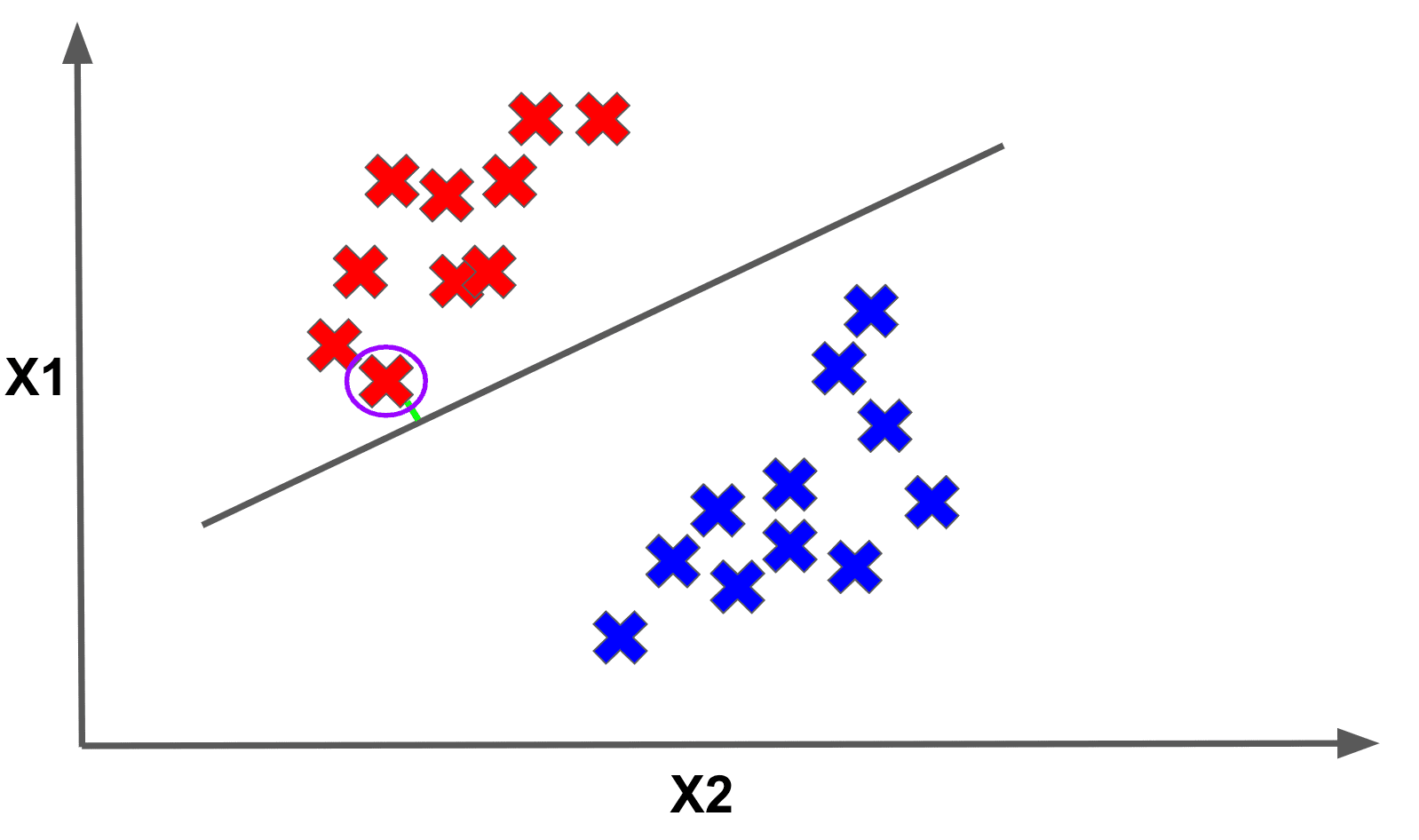

Now imagine if we took the minimum distance to the separator across all the points in the dataset. This minimum value is called the margin. Below we show the point that achieves the margin for the given separator:

Margin diagram

Optimal margins are at the core of support vector machine theory, and they inform how we will pick the “best” linear separator among the infinite choices. The way we will do this is by picking the linear separator that maximizes the margin.

Put another way, each separator defines a certain margin (i.e. an associated minimum perpendicular distance to the separator). Then, among the infinite possible separators, we will pick the separator that maximizes the margin.

Make sure you really understand that last statement! Support vector machines are often called max-margin classifiers for that exact reason. Given an optimal margin linear separator, the points with the smallest margins that are closest to the linear separator are called the support vectors.

Training the SVM

So, how do we train a support vector machine? The full mathematical details to describe the cost function we want to optimize are a bit beyond the scope of this post, but we will give a brief description of the training cost function.

Given a collection of datapoints [(X1,Y1),(X2,Y2),...,(Xn,Yn)][(X_1, Y_1), (X_2, Y_2), ... , (X_n, Y_n)] (where XX are the input features and YY are the correct output labels) and a vector of weights WW for our input features, finding the optimal margin classifier amounts to solving

minW12W2\textrm{min}_W \frac{1}{2} ||W||^2 such that Yi(WTXi)1 for all i=1,...,n\textrm{such that } Y_i(W^TX_i) \geq 1 \textrm{ for all } i = 1, ..., n

This cost function is basically a fancy way of saying that we want maximize the margin, while ensuring the margin of each datapoint is greater than or equal to 1.

It turns out finding the optimum for this cost function is a convex optimization problem, which means there exist standard algorithms for solving the problem. This is good news for us because it means optimally training a support vector machine is a tractable problem!

As a point of comparison, there exist some problems for which we cannot find the optimal value in a computationally reasonable time. It may even take exponential time to find the optimum!

The Kernel Trick

Thus far we have motivated support vector machines by only focusing on linear separators of data. It turns out that support vector machines can actually learn nonlinear separators, which is why they are such a powerful model class!

To motivate this idea, imagine that we have an input point with three features X=(X1,X2,X3)X = (X_1, X_2, X_3). We can transform the 3-dimensional vector XX into a higher-dimensional vector by applying a transformation function as follows: T(X)=(X1,X2,X3,X1X1,X2X2,X3X3)T(X) = (X_1, X_2, X_3, X_1\cdot X_1, X_2\cdot X_2, X_3\cdot X_3).

Our transformation function did two things:

  1. it created a 6-dimensional vector from a 3-dimensional one
  2. it added nonlinear interactions in our features by having certain new features be the squares of the original features.

Transforming features into a higher-dimensional space has some perks, namely that some data which is not linearly separable in a certain-dimensional space could become linearly separable when we project it into the higher-dimensional space.

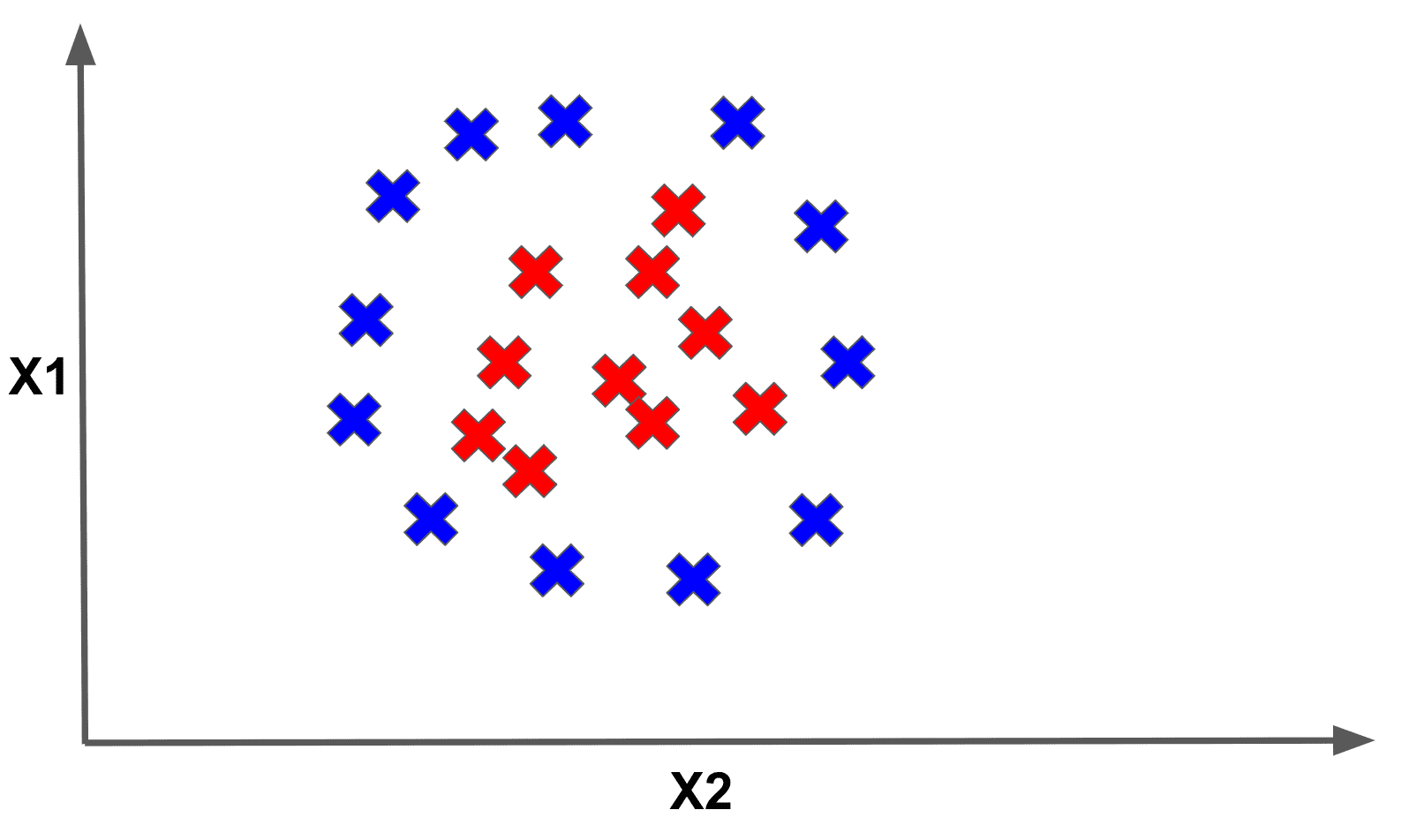

As a motivating example, consider the following data which is not linearly separable in 2-d space:

Kernel trick not separable diagram

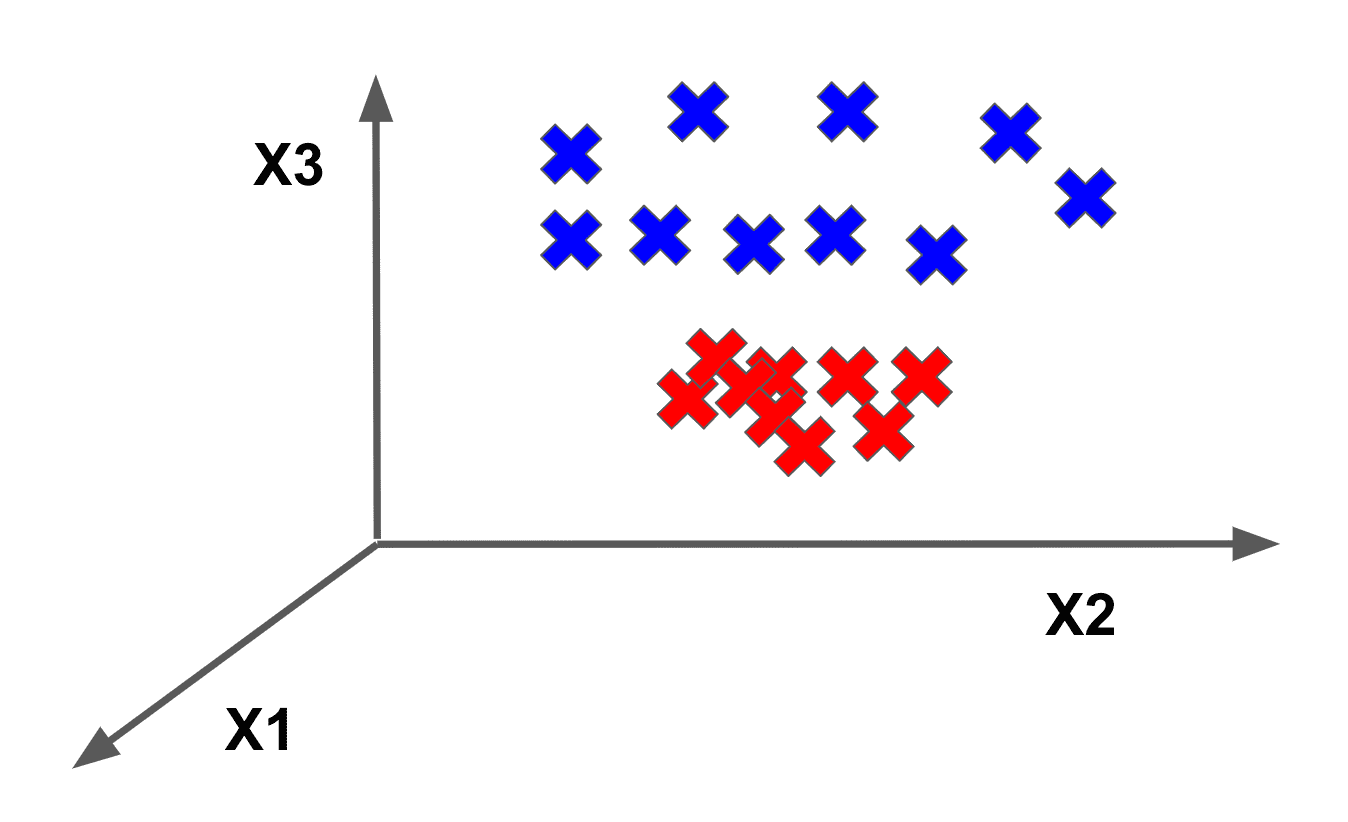

which becomes separable in 3-dimensional space through an appropriate feature transformation:

Kernel trick separable diagram

Such input feature transformations are particularly useful in support vector machines. It turns out that support vector machines formalize the notion of these feature transformation function through something called a kernel.

Without getting too much into the mathematical details, a kernel allows a support vector machine to learn using these transformed features in higher-dimensional space in a much more computationally efficient way. This is called the kernel trick.

Examples of kernels that are frequently used when learning a support vector machine model include the polynomial kernel and the radial basis function kernel.

A really crazy mathematical property of the radial basis function is that it can be interpreted as a mapping for an infinite-dimensional feature space! And yet we can still use it to do effective learning in our models. That’s insane

Slacking Off

Thus far, we have assumed that the data we are working with is always linearly separable. And if it wasn’t to begin with, we assumed we could project it into a higher-dimensional feature space where it would be linearly separable and the kernel trick would do all the heavy lifting.

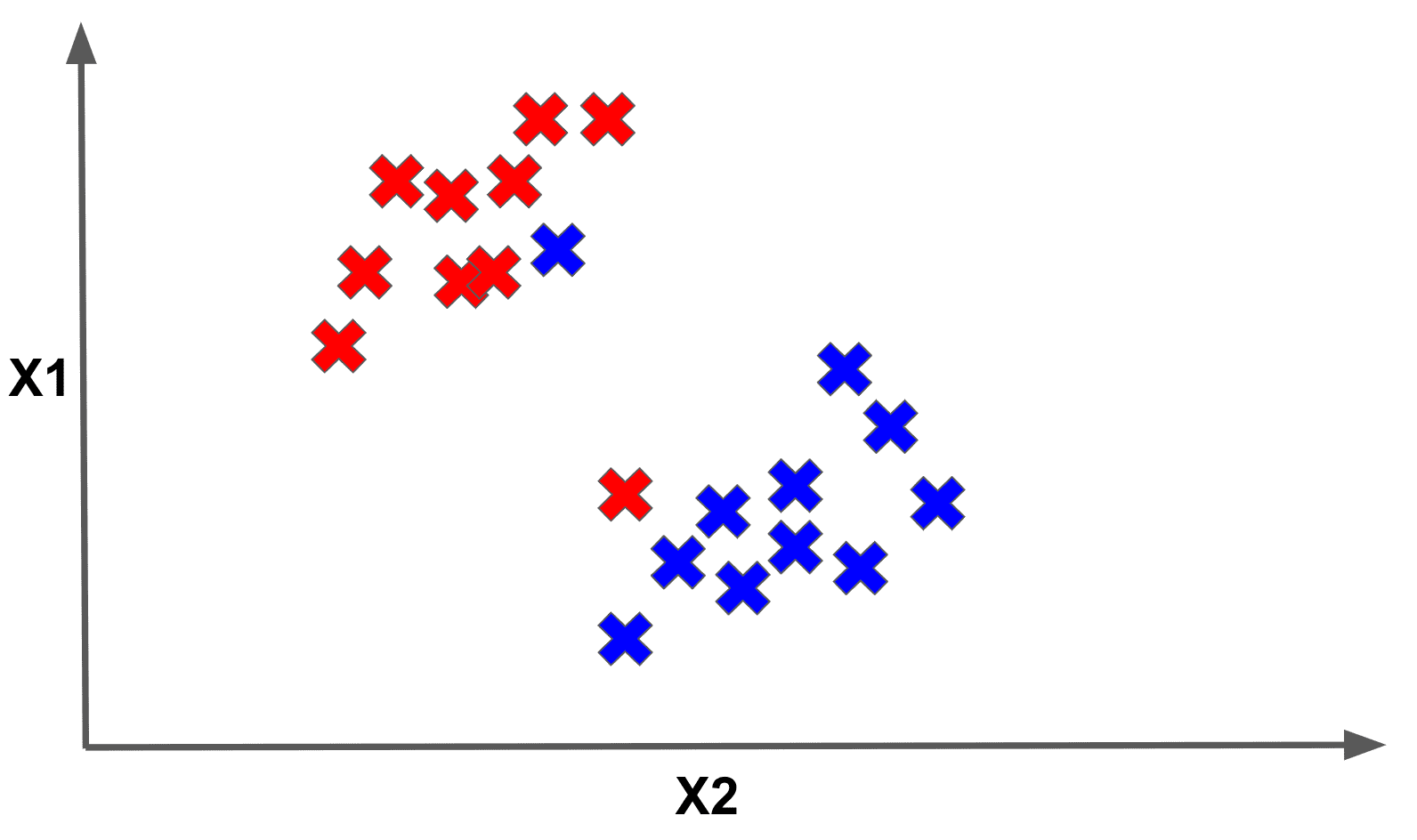

However, our data may not always be linearly separable. We may find ourselves in a situation as follows where it is impossible to linearly separate the data:

Not linearly separable data diagram

Moreover, recall that our original support vector machine cost function enforced the constraint that every point needs to have a margin greater than or equal to 1.

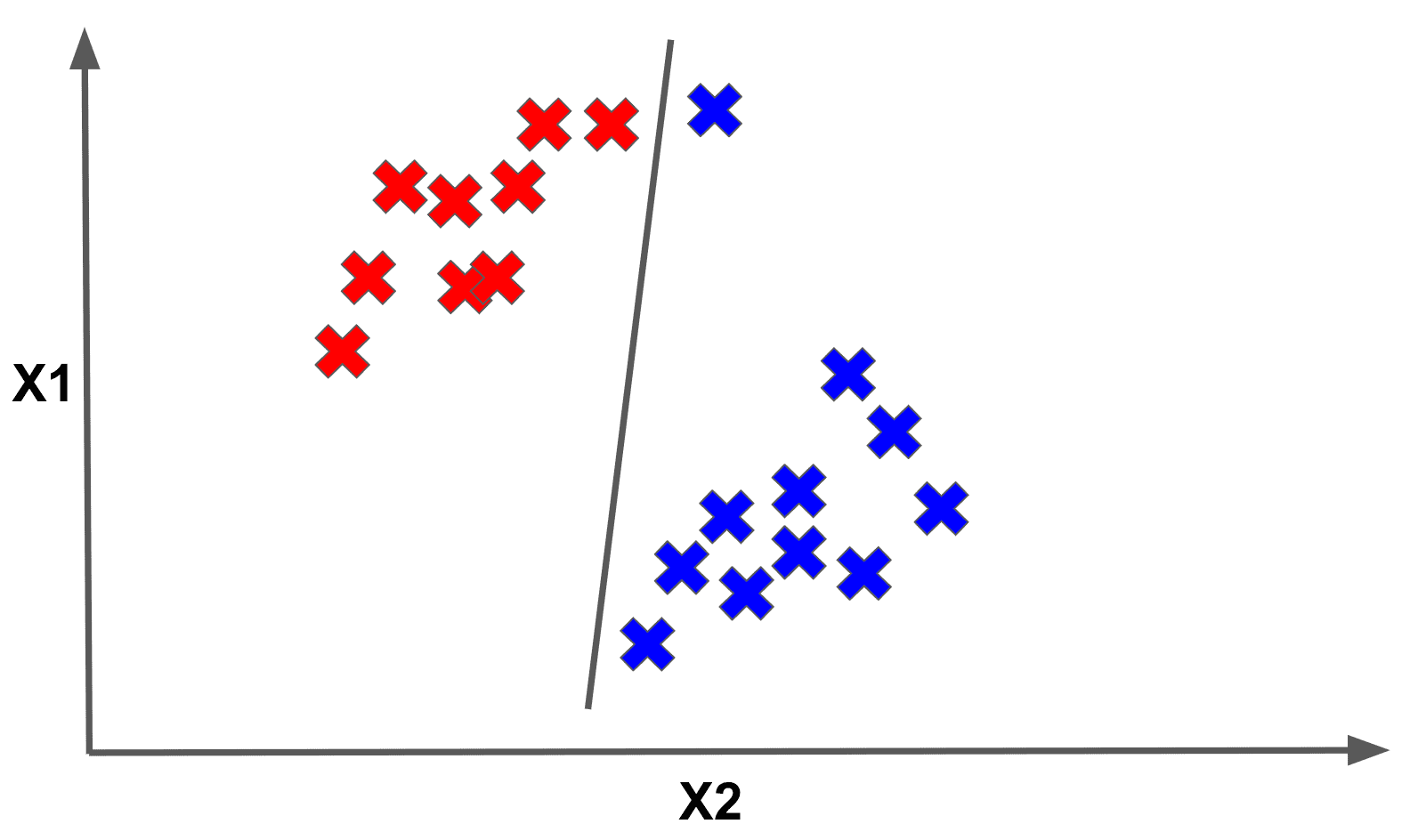

But perhaps this condition is too strict for all cases. For example, enforcing this condition for all points may make our model very susceptible to outliers as follows:

Support vector machine outlier diagram

To combat this problem, we can introduce what are called slack penalties into our support vector machine objective that allow certain points to have margins potentially smaller than 1. With these penalties, our new cost looks as follows:

minW12W2+Kisi\textrm{min}_W \frac{1}{2} ||W||^2 + K \cdot \sum_i s_i such that Yi(WTXi)1si for all i=1,...,n\textrm{such that } Y_i(W^TX_i) \geq 1-s_i \textrm{ for all } i = 1, ..., n si0 for all i=1,...,ms_i \geq 0 \textrm{ for all } i = 1, ..., m

Here the sis_i are our slack variables. Notice that we have changed the expression we are trying to minimize. The value K is what is called a hyperparameter.

In a nutshell, this means we can adjust K to determine how much we want our model to focus on minimizing the new term in our cost function or the old term. This is our first example of a very important concept in machine learning called regularization.

We will discuss regularization in a lot more detail in the next section. For now, just understand that this new addition makes the support vector machine more robust to nonlinearly-separable data.

Final Thoughts

Support vector machines are very powerful model. They are great for handling linearly separable data and with their various extensions can adequately handle nonlinearly separable data scenarios

As part of the machine learning toolkit, it is a great go-to model to try when starting on a new problem. However, one of its downsides is that using certain kernels, such as the radial basis function kernel, can sometimes make the model training slower, so be wary of that.
