Join the Ensemble

August 2019
model ensemble meme most interesting man
Source: Analytics Vidhya

As its name suggests, the core idea of ensembling is about combining a collection of models to get a more performant model. This is analogous to the idea of combining individual musical instruments to get an orchestral ensemble of harmonious sounds. This lesson will be about how we can achieve that harmonious sound in machine learning 🙂.

Ensembling is an extremely powerful technique and is often a surefire way to squeeze out a few percentage points of performance on any task you tackle.

For example, the winning entries of the Netflix challenge in 2007 were all sophisticated ensembled systems. Ensembling often can either help us get a more performant model or help address issues of overfitting by reducing our model variance.

Put the Model in the Bag

The first technique for ensembling we will study is called bagging or bootstrap agggregating. How does it actually work?

Say we have a dataset containing N datapoints. Traditionally, we would train a single model on this dataset, using some type of dataset splitting or cross-validation to assess the model’s generalization error.

With bagging, we take our dataset and generate K bootstrapped smaller datasets by randomly sampling some number M of datapoints with replacement from the original dataset. Phew that was a mouthful!

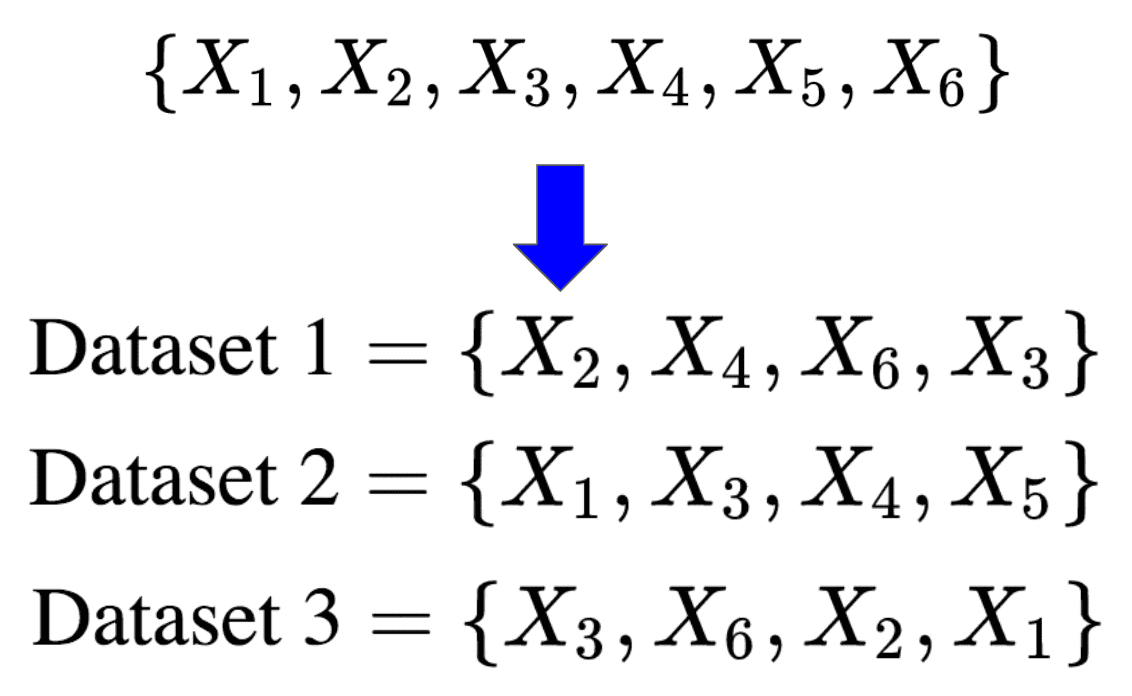

Let’s take a concrete example to illustrate our point. Assume we have a dataset consisting of N=6N=6 points and we want to generate K=3K=3 smaller datasets with M=4M=4 points each. That would look as follows:

boostrap datasets diagram

Note that because we are randomly sampling with replacement, points may be repeated in the smaller datasets. These smaller datasets are called bootstrapped datasets.

Now we train a separate model per bootstrapped dataset. When we are done we will have a mega model. When we want to label a new input, we run it through each of the models trained on the bootstrapped datasets, called bootstrapped models. We then average their outputs.

In the case of classification, we can simply take the majority label output by the bootstrapped models.

In the case of regression, we can numerically average the bootstrapped models’ outputs. An ensemble of three bootstrapped classification models with their predictions being aggregated would look as follows:

ensembled model aggregate diagram

For some high-level intuition about bagging, consider that by having each bootstrapped model learn using datapoints that are a subset of the total dataset, we allow for each model to learn some statistical regularities without overemphasizing any particular behavior.

In other words, by having many small models we cast a wider net in capturing the full dataset behavior. Bagging is often employed with decision trees, though it can be applied to any model class.

Getting a Boost

Boosting is a very different flavor of ensembling that is also extremely powerful. Many different boosting algorithms have been developed, though here we will focus on one of the more canonical techniques: adaboost. As with bagging, boosting involves training a collection of models on a dataset, though the exact procedure is very different.

Let’s describe the procedure through a concrete example. Assume we have 4 points in our training dataset, and we are building a model for a binary classification task.

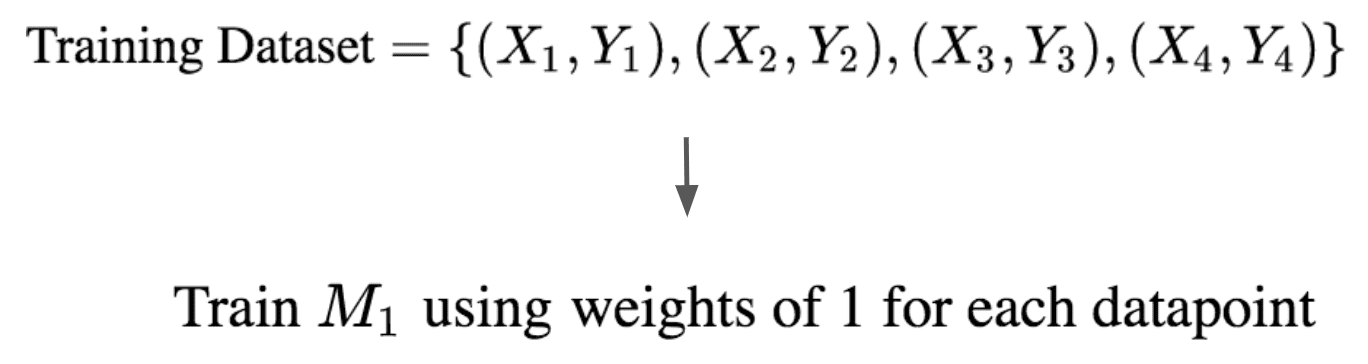

We start off by associating a numerical weight with each of the datapoints and use the weighted dataset to train a model. Let’s call this trained model M1M_1. Note the weights begin with the same value, which we will just set to 1 for now. This looks as follows:

model boosting 1 diagram

Next we compute how many of the datapoints our model miscalculated. This miscalculation error is used to associate a weight for the entire model M1M_1, which we will call W1W_1.

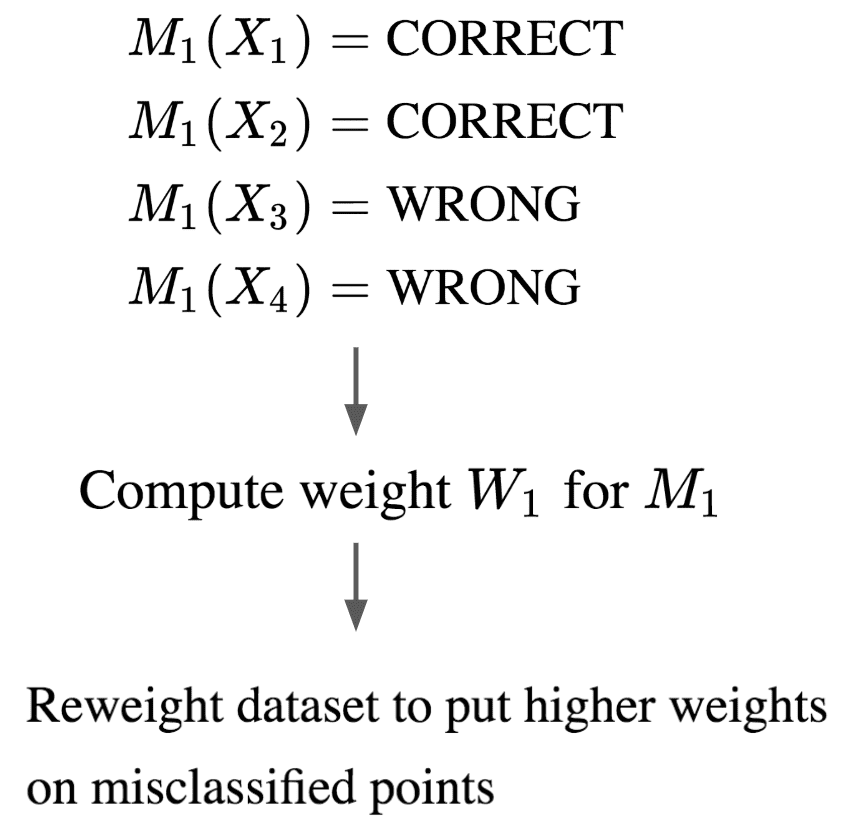

Furthermore, we now update all the weights on the dataset, upweighting those which were mispredicted and downweighting the others. This looks as follows:

model boosting 2 diagram

We now use this newly weighted dataset to train a fresh model M2M_2. This is then used to compute a new weight for M2M_2, which we will call W2W_2.

We continue this procedure of reweighting the dataset, training a new model, and then using the prediction error to associate a model weight.

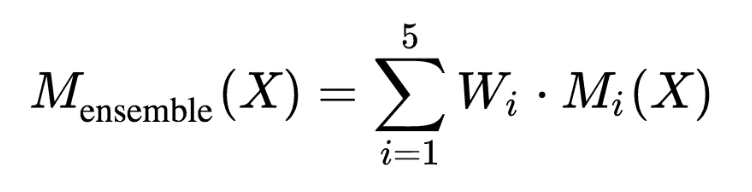

Let’s say we run this for 5 iterations. At the end, when we are predicting for a new input XX, we take the predictions of our models M1M_1, …, M5M_5 and form a majority vote as follows:

model boosting 3 diagram

In practice, the weights determined for the models tend to favor those models which were more accurate classifiers on the dataset. When we are building our initial “naive” models in the early stages of boosting, we are perfectly okay with training underperformant models.

In fact, that is what makes boosting such a beautiful and elegant technique: it demonstrates that you can take a collection of weak models and combine them to form a strong model.

Additionally, because we are training multiple models on effectively diverse datasets, we tend to reduce overfitting in our final boosted model.

Random Forests

We will now very briefly spend some time discussing a concrete ensembled model that is one of the best go-to models to employ for new tasks. This technique is called random forests, and it is an ensembling strategy for decision trees.

Random forests are often used to address overfitting that can happen in trees. It does this by performing a type of feature bagging. What this means is that during the procedure, we train individual trees on bootstrapped subsets of the data as in traditional bagging.

However, the trees that are created only use a random subset of the total feature set when they are being built. Recall that this is different from how trees are traditionally built, where during building we consider the full set of features for each split. Using a subset of the features at each split has the effect of even more strictly decorrelating the trees across the smaller datasets.

At the end, the new trees are combined as in normal bagging to form our mega model. Random forest are very nice models because they get the expressive power of decision trees but combat the high variance that trees are susceptible to.

Final Thoughts

We will end this lesson with a few additional notes. While ensembling is very powerful, it can be a very costly operation. This is because oftentimes in ensembling techniques we must train many models on a given dataset.

Because of this ensembling is often only used when you are trying to squeeze out a bit more performance on a certain problem. That being said, it is a fantastic technique for reducing overfitting in models.

Like what you read? I would love to hear from you! 🙂
