Deep Dive Into Neural Networks

April 2019
neural network meme inception

In this post, we will take our first deep dive into deep learning. Because deep learning is primarily the study of neural networks, we will spend the next few posts exploring the ins-and-outs of various classes of neural network models that each have different architectures and use-cases.

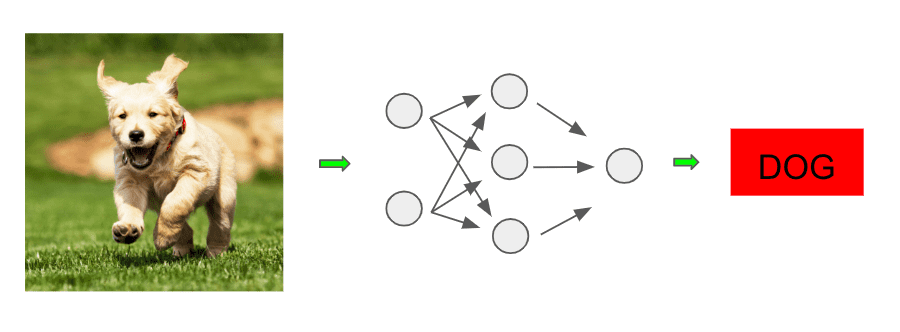

In this post, we will be studying the most vanilla flavor of neural networks: feedforward neural networks. Consider this diagram of running an image through some neural network-based classifier to determine it’s an image of a dog:

Basic neural network diagram

The network in the middle is the main engine doing our classifying, and it turns out this is our first example of a feedforward neural network. So what’s going on here? Let’s dive in and see!

Building Up the Network

Let’s zoom in on just the model from our image:

Zoom in on neural network diagram

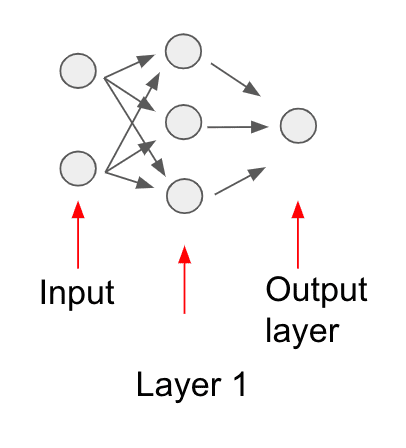

We can label each component of this feedforward network as follows:

Neural network layer label diagram

It turns out this network is performing certain layer-based computations. To understand what each layer is doing, we must first begin at the start of the model computation, which is where we provide the input data.

Recall that we can represent each point in a dataset through some featurized representation, and this is typically where we start when providing the point to a machine learning model. The exact features we extract often depend on the problem domain.

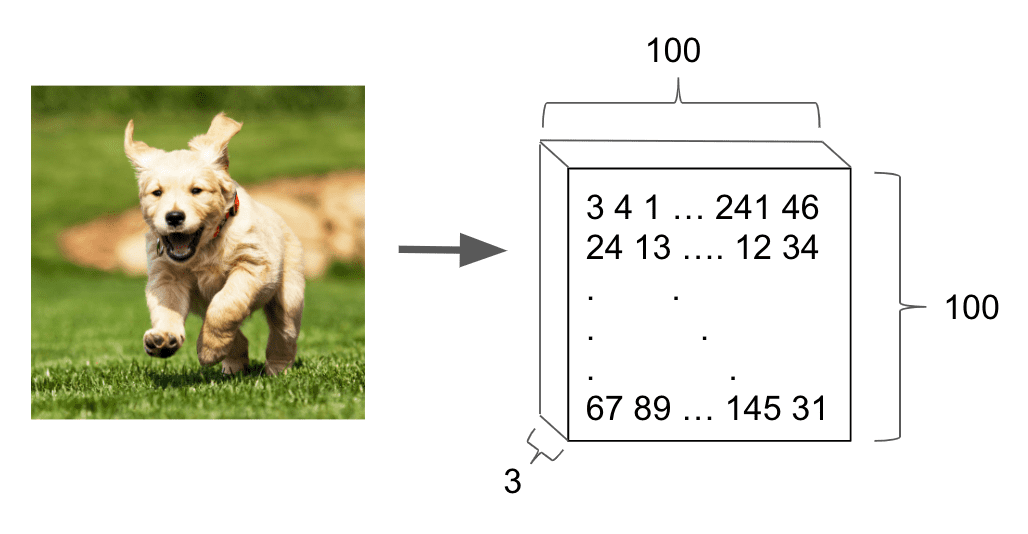

In the case of image classification, a common representation of an image is as a 3-d matrix (also known as a tensor) of red/green/blue pixel values. Therefore if our image is 100100x100100 pixels, each pixel would consist of 3 values, one representing the strength of each of the red, green, and blue color channels. Our image represented as a 100100x100100x33 grid of values would look as follows:

Image red green blue pixel value representation

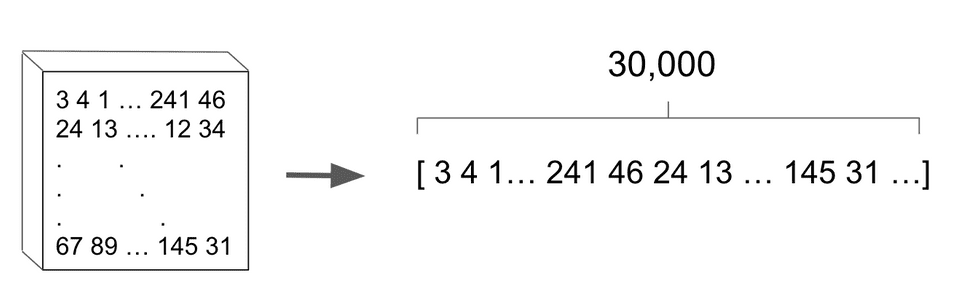

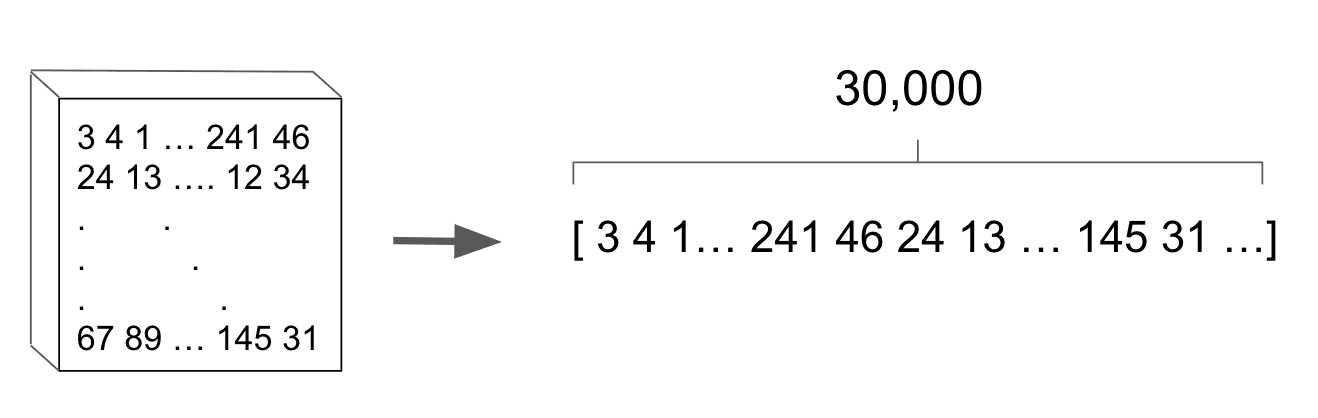

We can further collapse this 3-d representation into a single vector of 1001003=30,000100\cdot 100\cdot 3 = 30,000 values. We do this merely for convenience, without modifying any of the underlying information:

Collapsed image vector representation

For the sake of our example, rather than operating on a 100,000100,000-d vector, imagine that we use a smaller representation of the picture consisting of a 3-d vector: V=(1,0.4,2)V = (1, 0.4, 2). Here we have picked these values arbitrarily.

Now let’s take a 3-d weight vector W=(1,0.2,1)W = (-1, 0.2, 1) and compute the sum W1V1+W2V2+W3V3=11+0.20.4+12=1.08W_1 \cdot V_1 + W_2 \cdot V_2 + W_3 \cdot V_3 = -1 \cdot 1 + 0.2 \cdot 0.4 + 1 \cdot 2 = 1.08.

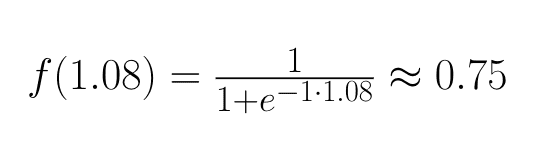

Now let’s further feed that sum through a sigmoid function:

Feeding through sigmoid function diagram

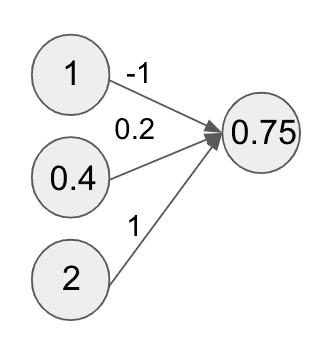

We then set that result as the value of the circle in the first layer:

First unit neural network diagram

This result is our first example of a neuron in the neural network terminology. Because the term neuron is a gross abuse of the biological term (and we don’t want to annoy any of our neuroscience friends), let’s just call it a compute unit for our purposes.

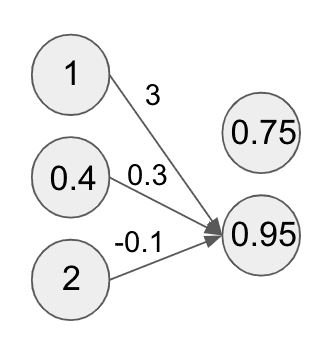

Now let’s use a new weight vector W2=(3,0.3,0.1)W_2 = (3, 0.3, -0.1) and perform the same computation with our feature vector, namely taking a linear sum and feeding it through a sigmoid function. If we repeat this computation with the new weight vector, we should get the result 0.810.81, which becomes the value of the second compute unit in our new layer:

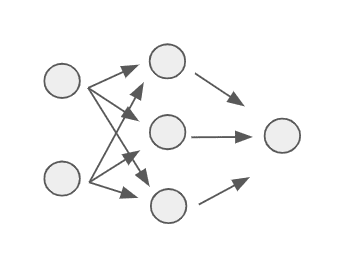

Second unit neural network diagram

We can repeat this computation for as many compute units as we want. The important thing is to use a different weight vector for each compute unit.

Let’s say we repeat this computation for 3 units in total with some weight vectors getting the following values:

Third unit neural network diagram

Congratulations! These computed values form the first layer of our neural network! These intermediate layers of a neural network after the layer where the inputs are fed in are called hidden layers.

This particular layer of computations also has a special name: a fully connected layer. Again we can have as many compute units as we want in the layer, and that number is something we can tune so as to maximize performance.

In addition, the sigmoid function we chose to run our linear sum through has a special name in the neural network community: an activation function. It turns out we can easily choose different activation functions to feed our linear sum through. We will explore a few commonly used variants in the next post.

One last note: we didn’t really mention how we chose the values of our weight vectors. This seems like an important detail to mention because the weights determine how certain features get upweighted (or downweighted) at a given compute unit. The truth is we picked them randomly, and this is basically what is done in practice (with a few caveats which we will discuss later).

Now that we have this vector of 3 compute units at the first layer of our network, why not repeat the same set of operations as before?

So that’s what we do. We pick new weights per compute unit, take a linear sum with the vector of values from the first layer, and run the result through a sigmoid function. This gives us the following:

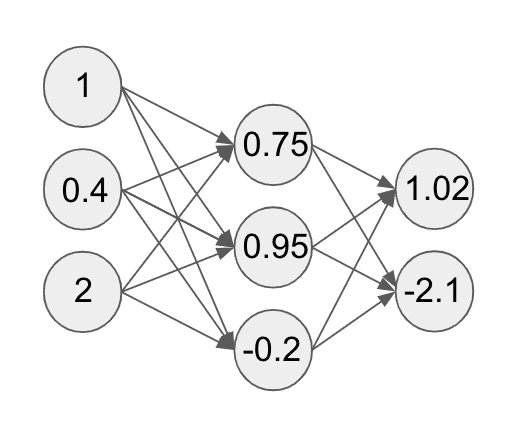

Second layer neural network diagram

Nice! This is the second layer of our network! Let’s assume that we are doing a 3-way classification task where we are trying to predict whether an image is of a cat, a dog, or neither.

Therefore we want to end up with three values that give us the probability for the values cat, dog, and neither. Let’s run our second layer through another similar set of computations. This will give us a distribution over three values as follows:

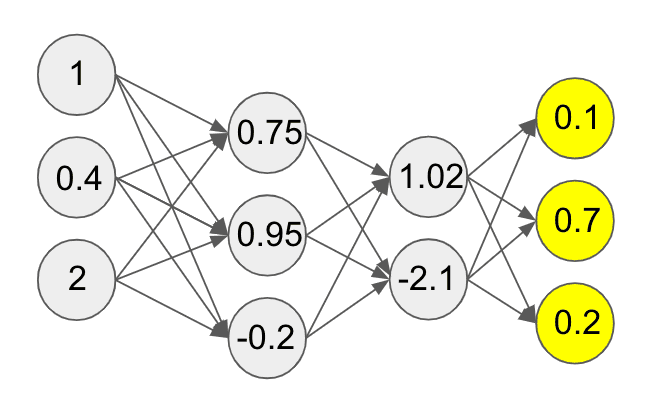

Third layer neural network diagram

This set of computations through the layers of our network is called the forward pass. Now we finally see why these are called feedforward networks: we are feeding values forward through the network.

One important note on hidden layers and compute units per layer of a neural network. In general, the number of layers and the number of units are both hyperparameters that we can adjust as necessary to achieve the best generalization error in our network.

Backpropagating Errors

These computations are all nice and good if our network predicts the right value for a given input. However, it seems pretty unlikely that if our weights were randomly chosen that our model would know to predict the right value.

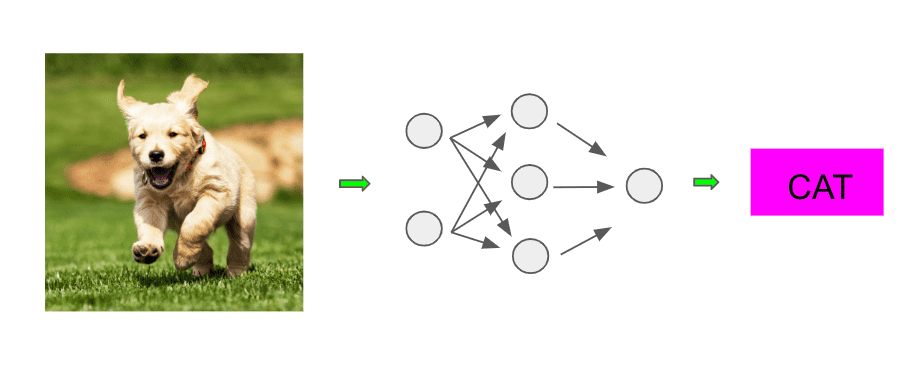

So what’s missing? It turns out our feedforward pass is only half the story. We have said nothing about how to actually train the model using our data. Let’s assume that during our forward pass our neural network made a mistake and instead predicted a cat:

Neural network incorrect classification diagram

It turns out that though our network made a mistake, we can still compute a cost for the values that our network computed. Intuitively it seems that if our network predicted (0.35,0.45,0.2)(0.35, 0.45, 0.2) for (dog, cat, neither) that is less wrong than if it had predicted (0.1,0.8,0.1)(0.1, 0.8, 0.1).

So we can formally associate a value for this level of wrongness using a cost function, similar to what we did previously with models such as linear regression. We will discuss some details about the possible cost functions we can use for different tasks in later posts.

For now let’s assume the cost calculated is 5. Neural networks as we have defined have a special property called differentiability, which means we can compute derivatives of the cost function with respect to all the weights. Woah, that was a mouthful.

We won’t go into the nitty-gritty details, but let’s take the weights of the the first compute unit of the final layer (of the neural network in our running example). We can compute gradients indicating how much we should update these weights to get closer to predicting the right value (thereby lowering the value of the cost function).

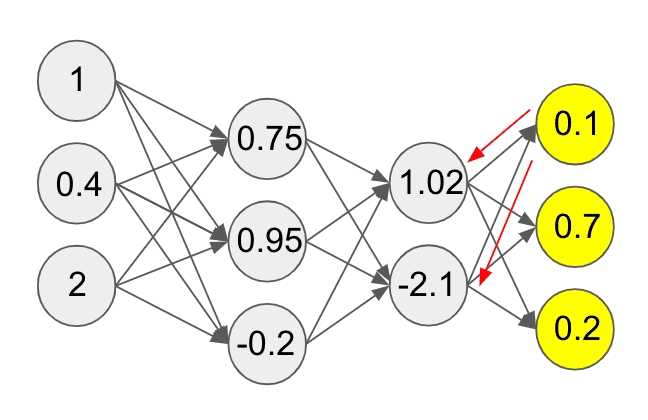

Below, the gradient of the first unit with respect to the weights in the preceding layer flow backwards. This is indicated by the red arrows:

Back flow neural network gradient diagram

Once we have these gradients, we update the weights as necessary. Notice how here the end result is being used to send information backward in the network. This backward flow of signal is called backpropagation.

It turns out we can compute these gradients for all the weights in a given layer. Once we have computed the gradients and updated the weights in the last layer, we compute the derivatives and update the weights in the second layer.

We can continue this all the way to the first layer. These backpropagation updates are done using gradient descent. In practice, we update all the weights in the entire network for some number of iterations until our cost function decreases as much as we would like.

Final Thoughts

This concludes our (hopefully) gentle introduction to feedforward neural networks. While they may be the most vanilla networks, in practice feedforward networks can be successfully applied on many regression and classification tasks. Though we used the example of image classification, we can apply feedforward networks to many other problem domains.

In general, the compute units in neural network hidden layers learn many powerful representations of the data during training. In the next lessons we will be building out some of the details of neural network theory.


Like what you read? I would love to hear from you! 🙂
